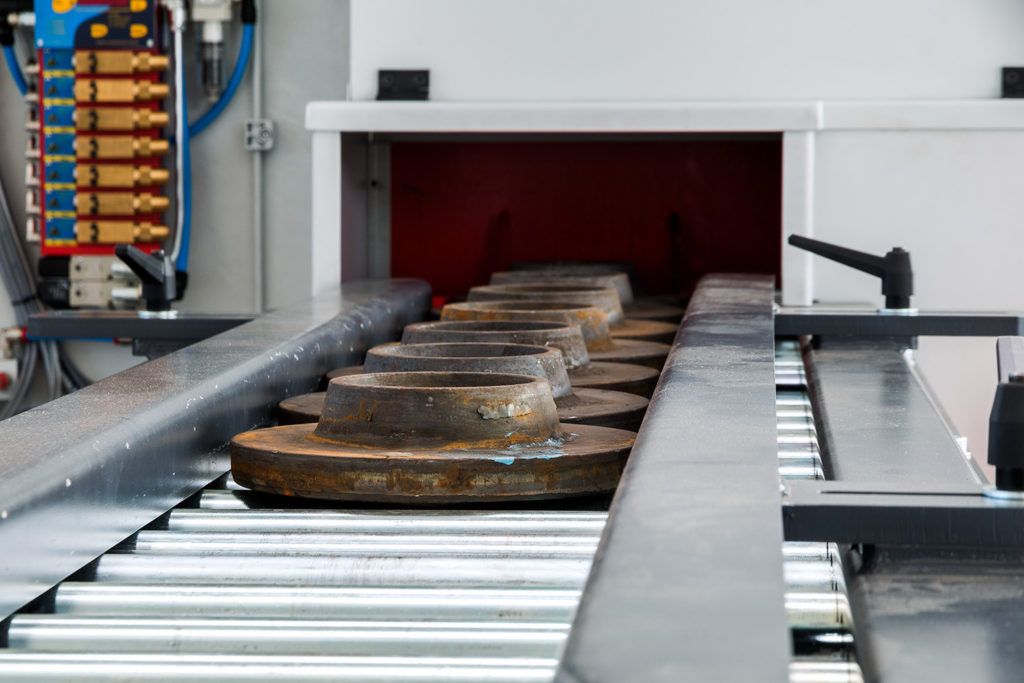

Stage 01
Loading the Pieces
The operator places the raw casting or forged blank into the dedicated loading area where the machine's automated pick-up spindle grips and locks the workpiece securely.
Heavy-Duty Precision Machining
Pick-Up Multi-Station CNC Vertical Turning Centers
Vertical machining centers by Nanjing Fortis Storage Equipment Manufacturing Co., Ltd. operate by holding the workpiece vertically, rotating it around a cutting tool attached to a precision spindle, and systematically removing material to shape high-tolerance finished components. The vertical orientation utilizes natural gravity to secure the workpiece, providing enhanced structural stability during high-load machining operations.
Designed specifically to help overseas procurement teams streamline production, our multi-station pick-up turning centers integrate multiple vertical turning lathe (VTL) heads, drilling and tapping stations, automated parts transfer mechanisms, and stamping capabilities into a single compact equipment footprint.
9 Sizes
Spindle ranges from 170mm up to 1,300mm to suit diverse component scales.
1 Setup
Eliminates manual part repositioning across multiple individual machines.
Multi-Spindle
Automated pick-up capability for seamless station-to-station transfer.
Custom Tooling
Customizable with horizontal operating units and ATC magazines.
Automated Production Line
Multi-Station Integrated Processing Cycle
Our pick-up turning lines process complex workpieces through continuous automated stages, reducing cycle times and minimizing labor costs for high-volume manufacturing.

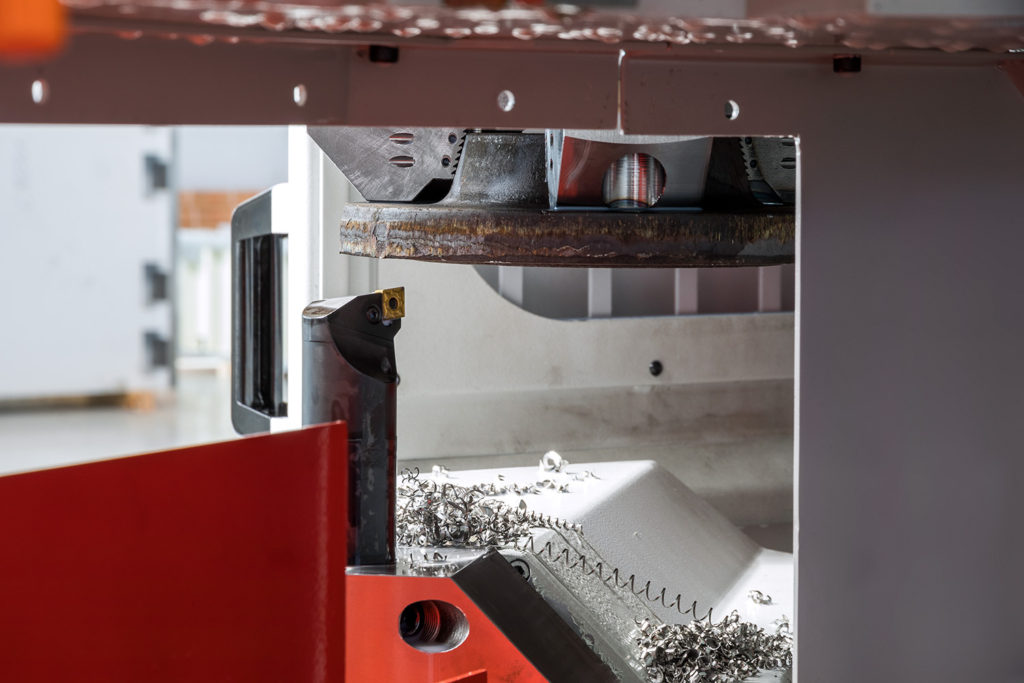

Stage 02
Turning Bottom & Outside
High-rigidity turning tools accurately machine the bottom face and outer diameter contours, delivering consistent dimensional tolerances and surface finishes.

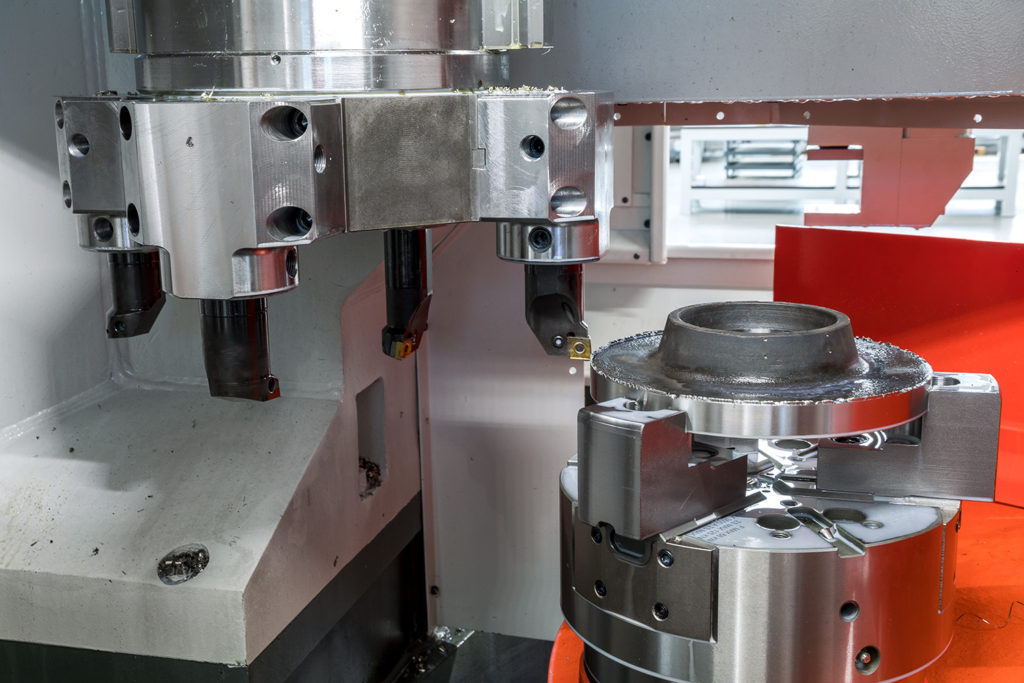

Stage 03
Turning Top & Inside
The spindle moves the part to the secondary station for precision internal boring, top facing, and complex profile turning with high repeatability.

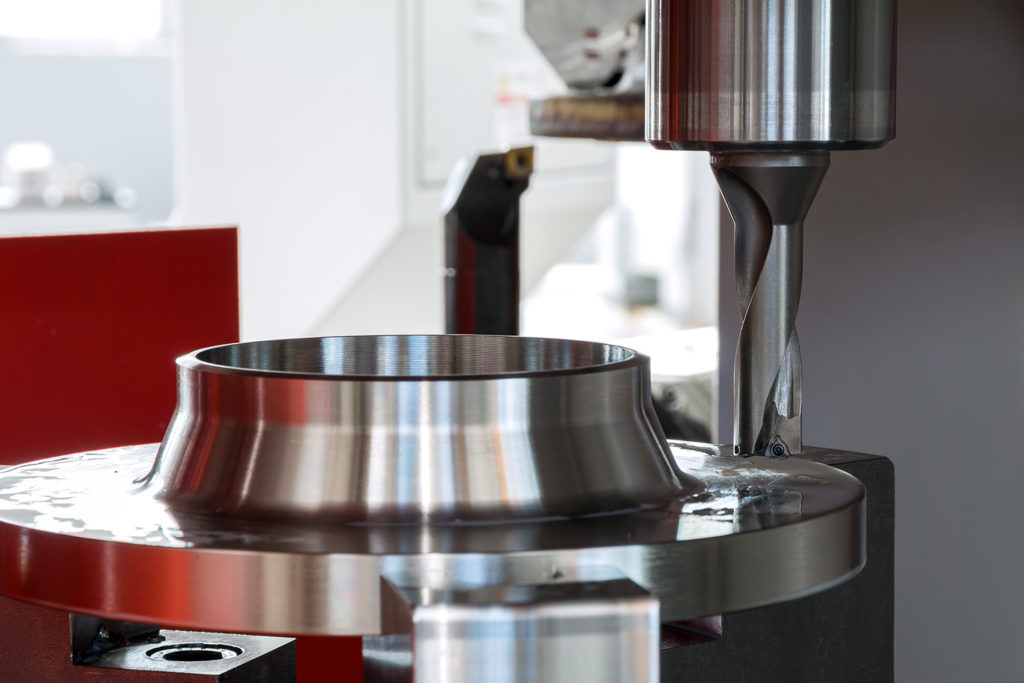

Stage 04
Precision Drilling & Tapping
Dedicated multi-axis drilling heads perform bolt-hole pattern drilling, reaming, and thread tapping without taking up turning spindle capacity.

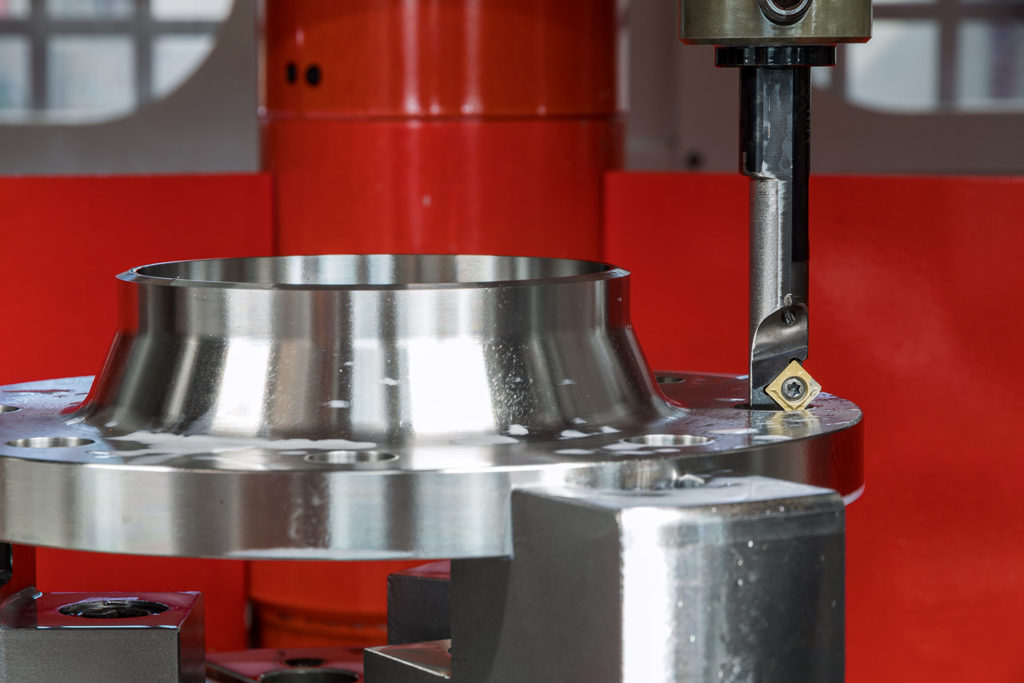

Stage 05
Edge Chamfering
Automated deburring and edge chamfering tools finish sharp edges, preparing seal grooves, bolt holes, and flange faces for immediate assembly.

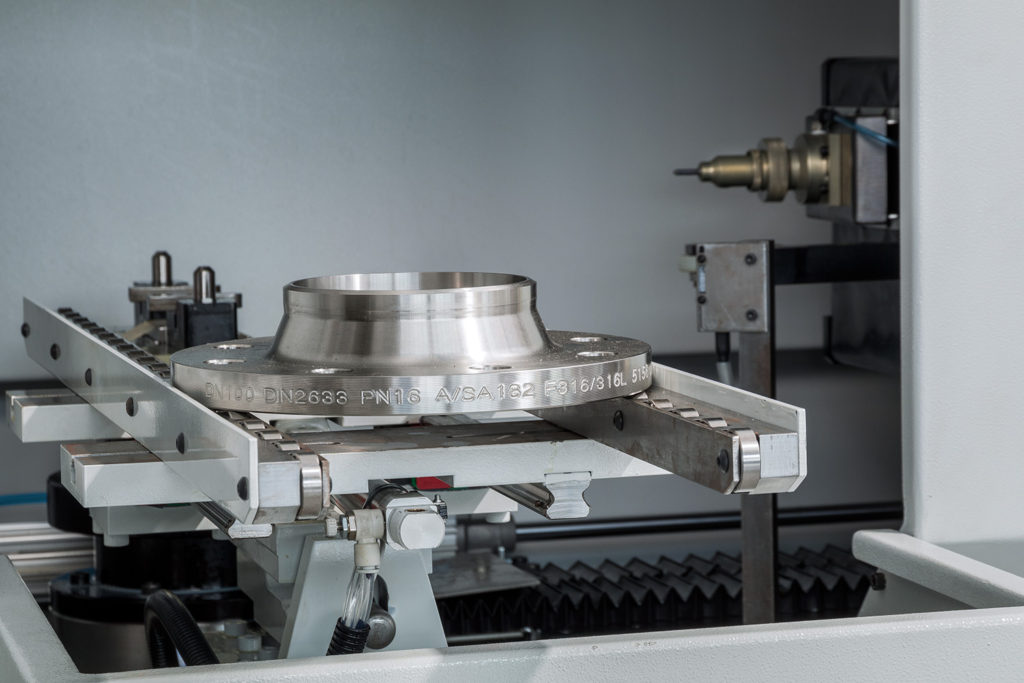

Stage 06
Stamping & Unloading
Part traceability marking and serial number stamping are completed automatically prior to depositing the finished component in the output buffer.
Manufacturing Excellence
Advantages of Selecting Nanjing Fortis Vertical Centers
Maximized Productivity & Reduced Bottlenecks
The multi-spindle pick-up design allows simultaneous operations on multiple components. By eliminating idle loading time between cycles, machines achieve significantly higher throughput and reduce production floor bottlenecks.
Superior Structural Stability & Accuracy
Gravity-assisted vertical workpiece orientation ensures firm clamping forces and reduced vibration during heavy-duty turning and milling. This rigidity translates to micron-level tolerances and extended cutting tool longevity.
Multi-Tasking Machine Versatility
Combining lathe turning, drilling, tapping, chamfering, and part marking into one multi-station equipment footprint eliminates floor space waste and simplifies complete component fabrication for overseas factories.
Cost-Efficient Automated Operation
Integrated pick-up robotics lower manual operator requirements, minimize human handling errors, and optimize total cost of ownership (TCO) for high-spec industrial component manufacturing.
Video Showroom
Vertical Machining Center Operations
Pick Up 500 Multi-Station Turning Center
Watch Nanjing Fortis vertical turning technology perform automated part pick-up, precision turning, drilling, and unloading on heavy-duty components for pump and valve manufacturers.
Pick Up 260 High-Speed Machining Line
Detailed operational footage showing rapid cycle times, continuous automated transfer, and extreme tolerance control across high-volume production runs.
