CNC Machining Centers
Trevisan Multi-Tasking Milling & Turning Solutions
Trevisan Machine Tool sets the global standard for high-performance milling and turning solutions. Since 1963, we have designed and built specialized equipment to solve our customers' most demanding and complicated applications. We have grown to offer a complete line of integrated contour head U-axis machining centers while providing custom-engineered solutions for the most challenging projects worldwide.

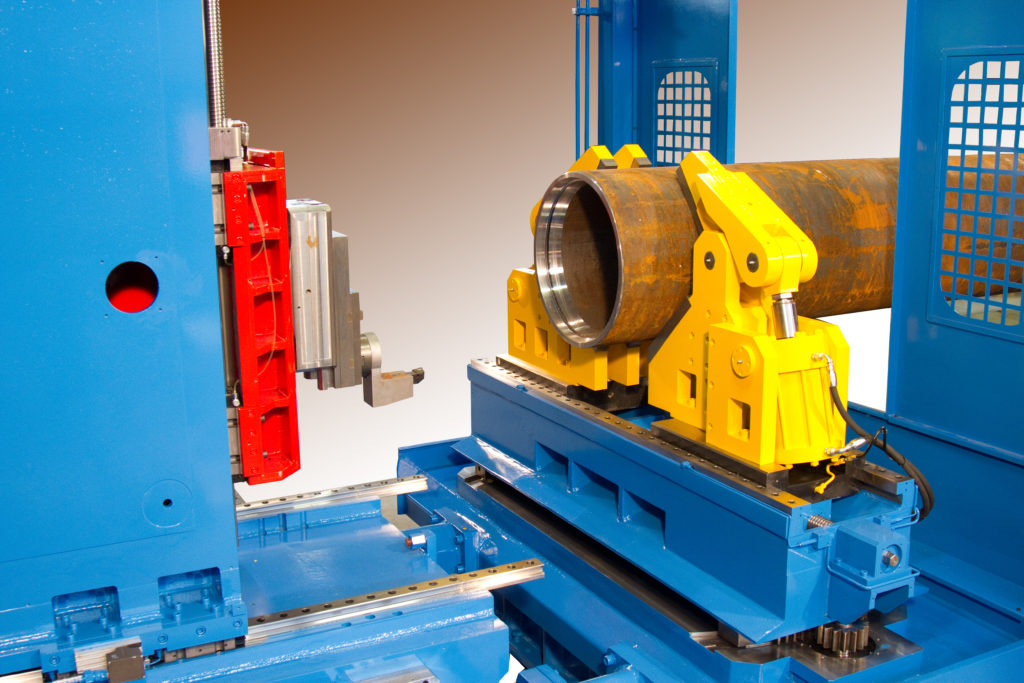

The patented Trevisan concept involves holding the workpiece stationary and rotating the cutting tools around it. Besides performing complex milling operations, the process completes multiple turning operations. Operators can machine heavy, oversized, or odd-shaped parts on all sides without an additional setup or part handling. Less material handling and minimal setups result in fewer operator errors, tighter tolerances, safer working conditions, and faster cycle times.
Zero Changeovers
Eliminate costly tool and fixture resetting between different machining processes.
Maximum Torque
Patented tool holders and specialized gearboxes deliver high-RPM heavy roughing.
Stationary Part Stability
Perfect for large valves, fluid ends, pumps, flanges, and complex custom castings.
E-E-A-T Excellence
Over 60 years of precision engineering pedigree serving global procurement teams.
High-Performance CNC Machining Solutions
Explore our specialized categories of heavy industrial CNC machines. Our systems are engineered to optimize workflow, maximize throughput, and guarantee micron-level repeatability for international manufacturers.
Integrated U-Axis Machining Centers
Our horizontal machining centers combine the benefits of stationary-part fabrication with the advantages of rotating-part machining. When performing rotating-part machining on a vertical lathe, the cutting speed is restricted because of the chuck's diameter, resulting in significantly slower production times. To achieve a more efficient solution, Trevisan facing machining centers utilize a specially designed gearbox, a patented tool holder, and a facing head that varies depending on the model and machining requirements. These features ensure maximum torque and power with higher RPMs for optimal cutting production.
GT350
Engineered for small-series precision parts with compact layouts.
- Pallet Size: 630 mm
- Max Turning Diameter: 350 mm
- Capacity Type: Small Series

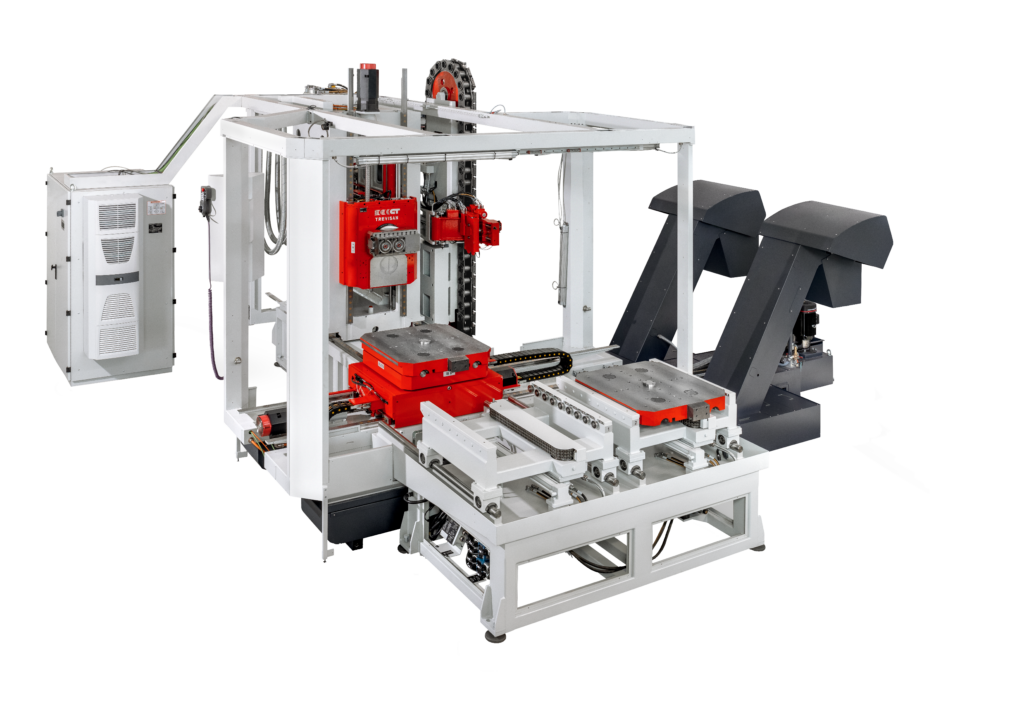

DS450 / 130C
Our medium series solution designed for rapid structural parts machining.
- Pallet Size: 700 mm
- Max Turning Diameter: 600 mm
- Capacity Type: Medium Series

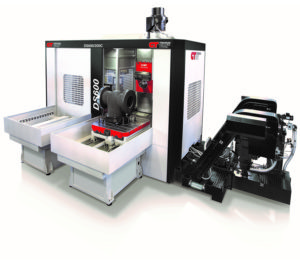

DS600 / 200C
Optimized for medium-plus structural applications requiring robust horizontal boring.
- Pallet Size: 900 mm
- Max Turning Diameter: 900 mm
- Capacity Type: Medium Plus Series

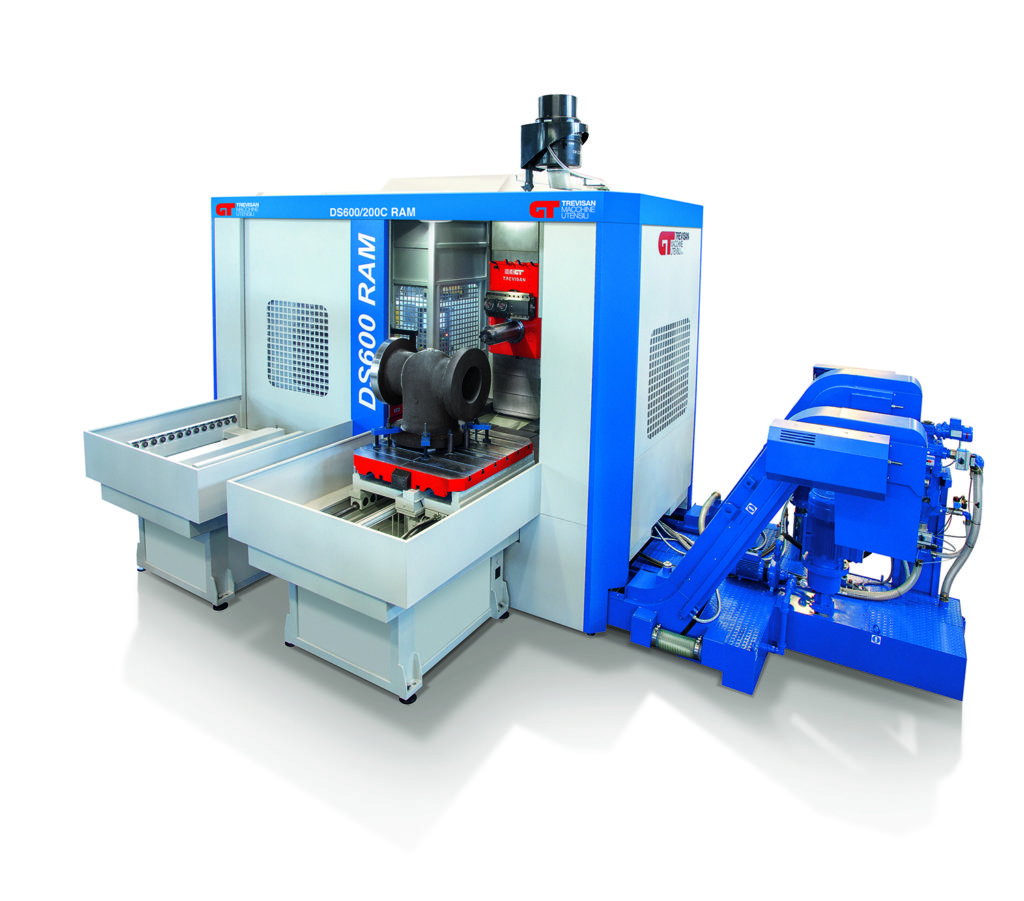

DS600 / 200C RAM
Heavy duty RAM extension configuration for deep-cavity reach and boring operations.
- Pallet Size: 900 mm
- Max Turning Diameter: 900 mm
- Capacity Type: Medium Plus RAM Series
DS900 / 300C
Built for large industrial castings, valves, and oilfield equipment.
- Pallet Size: 1250 mm
- Max Turning Diameter: 1500 mm
- Capacity Type: Large Series

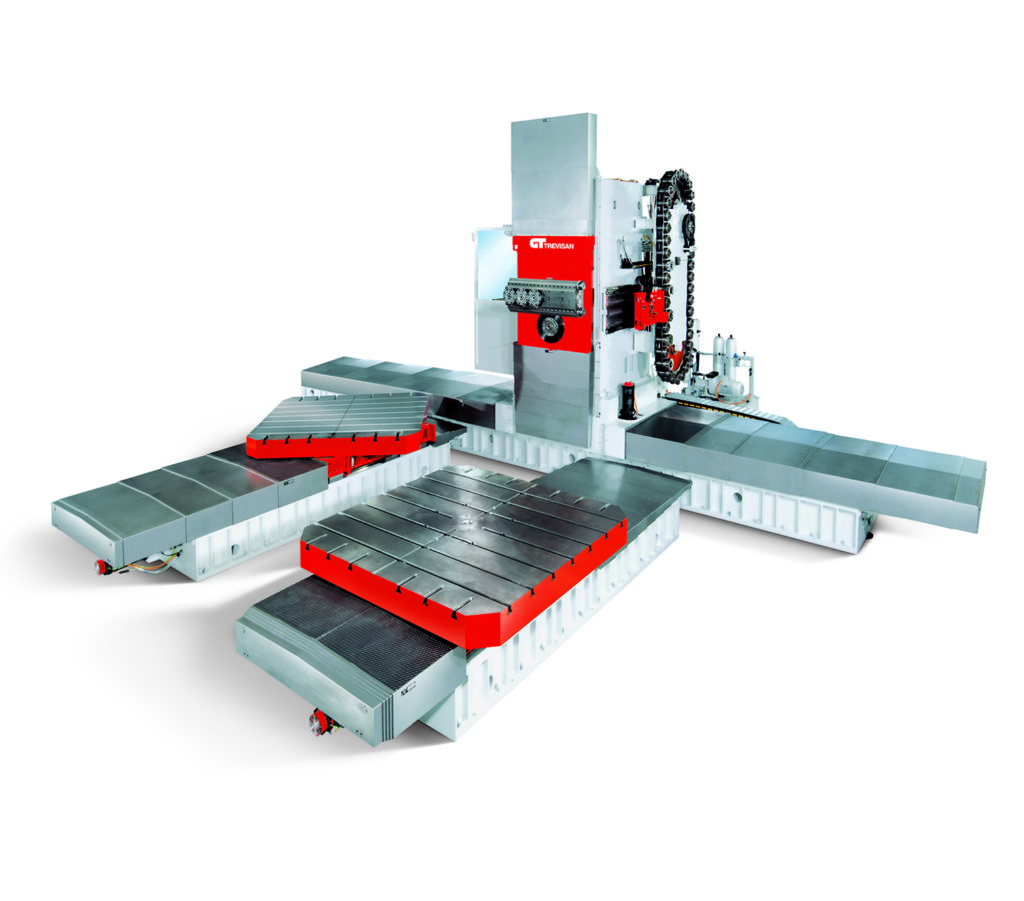

DS1200 / 450C
Oversized capacity model offering stable processing for massive weldments.
- Pallet Size: 2400 mm
- Max Turning Diameter: 2000 mm
- Capacity Type: Oversize Series
DS1500 / 450C
High-torque oversized system designed to satisfy extra-deep envelope specifications.
- Pallet Size: 2400 mm
- Max Turning Diameter: 2500 mm
- Capacity Type: Oversize Plus Series
DS1800 / 460C
Our colossus series system offering unrivaled rigidity for massive structural parts.
- Pallet Size: 3000 mm
- Max Turning Diameter: 3000 mm
- Capacity Type: Colossus Series
Modulo Equipe Unit Solutions
Customizable Turret Module Systems

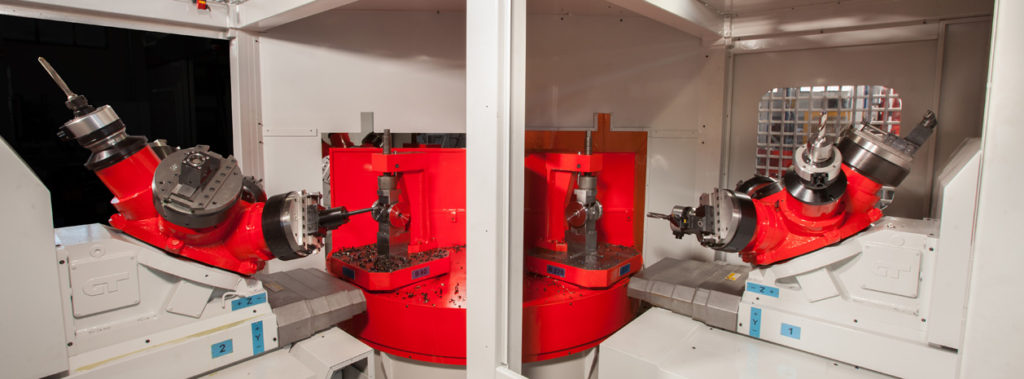

Trevisan Module Equipe machines are turret modules that are fully adaptable to meet your product needs. These modules have six-position turrets configurable with any combination of contour heads, mill-drill spindles, multi-spindle drills, or tapping heads.
Combining several modules in the same machine system offers limitless customized solutions that can machine multiple sides of a part simultaneously for faster cycle times and superior part quality.
High-Speed Machining Centers & Vertical Lines
Vertical Turning Line Systems

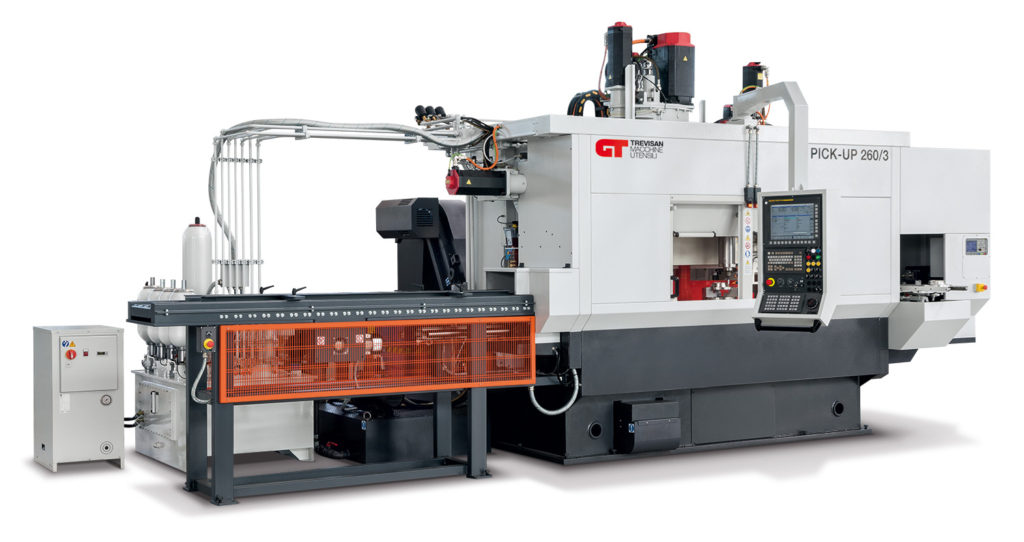

Vertical turning line machines from Trevisan feature a fully automated parts transfer system with stamping capabilities, combining several high-speed vertical lathes and drilling stations in a single unit. With the added stations, the machine can work on multiple parts simultaneously to reduce cycle time.
Trevisan offers multiple standard machine sizes that are highly customizable to enhance product output and quality further, ensuring peak efficiency for global industrial suppliers.
Specialized Custom CNC Machinery
Proven Custom Technology

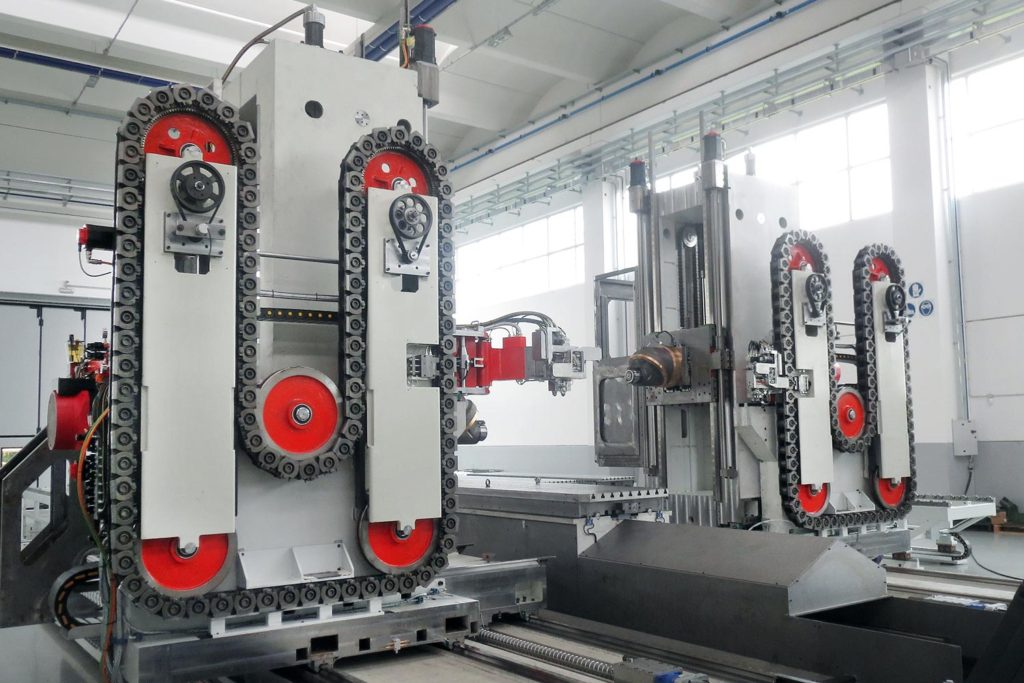

Girolamo Trevisan started Trevisan Machine Tool by building specialized custom machines in 1963. Today, Trevisan still carries on this passion to engineer custom machines to meet our customers' ever-changing needs.
We build many of these customized machines from our proven technology of the standard machining lines. They are then modified and reconfigured to meet the exact customer requirements throughout an ever-growing number of industries worldwide.
Learn More About Our High-Speed, Universal Machining Centers
If you want to learn more about how our equipment can improve the efficiency and quality of your machining operation, the experts at Trevisan Machine Tool can guide you. Discover customized features, machine envelopes, tooling capabilities, and full system integration guidelines.
Global Engineering Support Available
