Heavy-Duty Horizontal Machining Centers
Engineered with double-spindle power and integrated U-axis facing heads for extreme metal removal, high torque, and structural rigidity.
Engineered for Massive Industrial Components
For over six decades, Trevisan Machine Tool has designed and built the industry's most robust heavy-duty horizontal milling and turning centers. Purpose-engineered to replace multi-machine operations, our heavy-duty lines combine high-torque milling spindles with contouring heads to execute turning, boring, facing, and threading within a single workpiece setup.
By keeping the massive component stationary and moving the cutting tool, global manufacturers in aerospace, energy, and defense achieve unmatched alignment tolerance while significantly reducing operational cycle times, crane transport risks, and total labor costs.
Standard & Custom Machining Configurations
Explore the technical parameters of the Trevisan DS series. Each machining center is optimized for heavy-metal cutting, vibration absorption, and dimensional accuracy.
DS600/RAM Machining Center
Equipped with dual 100-HP spindle motors to deliver maximum rigidity and raw power for challenging components like valve bodies and high-pressure housings.
- Max Turning Diameter 900 mm
- Configuration Dual Spindle / RAM
- Primary Material High-Alloy Cast Steel
DS900/300C Machining Center
Optimized for medium-to-large heavy-duty components. Built with consistent surface speed controls to handle single-point threading and complex geometry contouring.
- Max Turning Diameter 1,500 mm
- Integrated Head Size 300 mm
- Best Suited For Large Flow Flanges

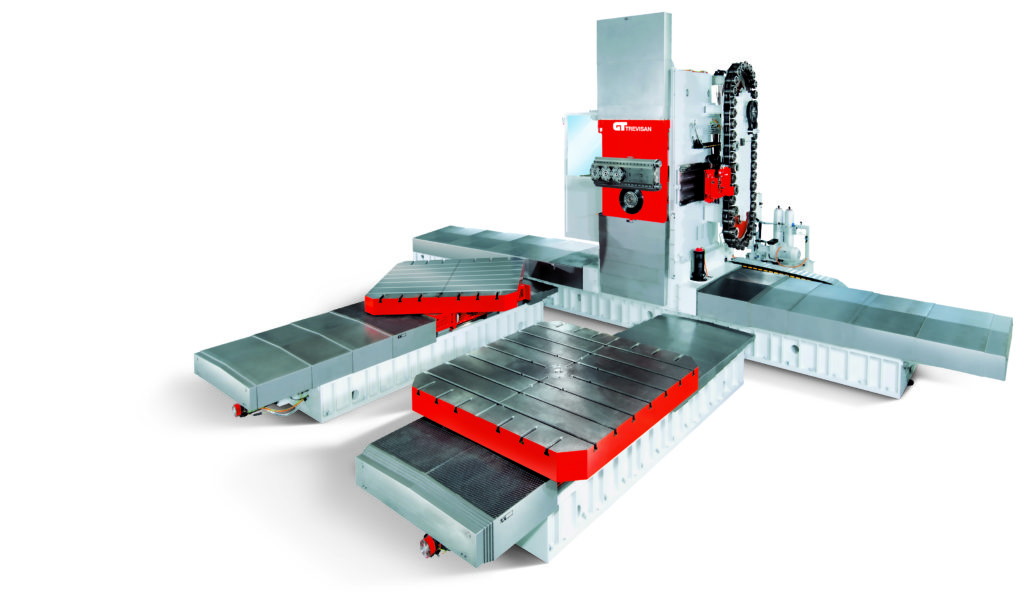

DS1200/450C Machining Center
Designed to balance high-torque milling with precise finishing. Features a 250 mm contour head capable of machining smaller features while supporting massive parts.
- Max Turning Diameter 2,000 mm
- Contour Head Type High-Speed Integrated
- Best Suited For Mining Equipment Parts
DS1500/450C Machining Center
Ideal for massive workpieces requiring multi-tool versatility. Seamlessly shifts tools directly from the automatic magazine to either the quill spindle or contour head pockets.
- Max Turning Diameter 2,500 mm
- Tool Storage Expandable ATC
- Key Application Marine Propellers & Pumps

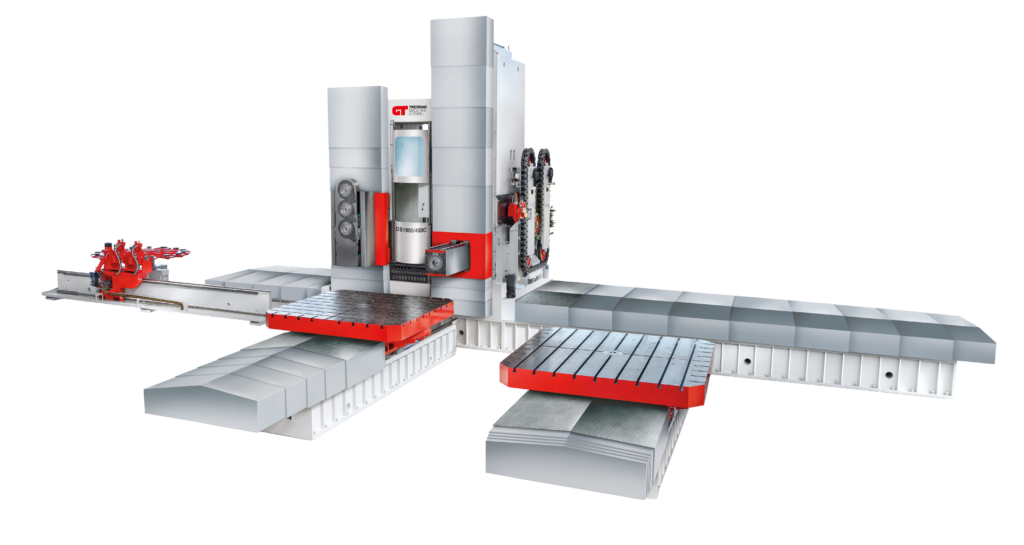

DS1800/460C Colossus
Our flagship heavy-duty machining center. Features a double-column configuration dividing milling and turning setups, complemented by a 99-tool capacity RAM.
- Max Turning Diameter 3,000 mm
- Structural Design Double-Column Cast
- Key Application Defense & Aerospace Structures
Heavy-Duty Series Comparative Parameters
Review the technical data of our primary heavy-duty horizontal models to evaluate fitment against your production requirements.
| Model | Max Turning Dia (mm) | X / Y / Z Travel (mm) | Contour Head Size (mm) | Spindle Power (kW) | Vibration Absorption |
|---|---|---|---|---|---|
| DS600/RAM | 900 | 2,000 / 1,600 / 1,500 | N/A (RAM Config) | 2 x 75 kW | Certified Meehanite Cast Iron |
| DS900/300C | 1,500 | 2,500 / 2,000 / 1,800 | 300 | 90 kW | High-Damping Polymer Sand Infusion |
| DS1200/450C | 2,000 | 3,000 / 2,500 / 2,000 | 450 | 110 kW | Reinforced Double-Anchor Base |
| DS1500/450C | 2,500 | 4,000 / 3,000 / 2,200 | 450 | 110 kW | Heavy-Ribbed Structural Frame |
| DS1800/460C | 3,000 | 5,000 / 3,500 / 2,500 | 460 | 130 kW | Double-Column Symmetric Gantry |
Why Global Procurement Managers Choose Trevisan
We design our horizontal machining centers to operate continuously under harsh factory conditions. Our solutions optimize space, decrease tool wear, and prevent human handling errors.
Single-Setup Execution
Complete milling, turning, boring, facing, and threading on one machine. Eliminating the need to move large components between different lathes and milling blocks enhances safety and geometric precision.
High Metal Removal Rates (MRR)
Equipped with oversized quills and direct-drive gears, our machines deliver maximum torque at low RPMs. This allows for deep cuts in tough materials like Inconel, Duplex steel, and titanium alloys.
Global B2B Support Network
We provide localized technical assistance from our North American headquarters. This includes on-site installation, fast component shipping, and customized operator training programs.
Heavy-Duty CNC Machining in Action
Watch our heavy-duty horizontal systems perform deep boring and high-feed turning operations on complex steel alloys.
