Integrated Facing Head CNC Machining Centers
Single-Setup Precision Turning & Milling Solutions
Nanjing Fortis Storage Equipment Manufacturing Co., Ltd. has established global industry benchmarks for horizontal milling machine quality, performance, and operational efficiency. Our specialized U-axis horizontal machining centers feature dual independent spindles that integrate full milling, boring, drilling, and contour-facing capabilities into a single workpiece setup.
By keeping heavy or asymmetrical workpieces stationary while moving the built-in U-axis contour facing head around the component, our equipment overcomes the physical limitations of conventional lathes and vertical turning centers. Global procurement managers and plant engineers rely on our machines to optimize cycle times, eliminate expensive fixtures, and eliminate setup errors across complex industrial manufacturing projects.
Advanced U-Axis Contouring Technology in Action

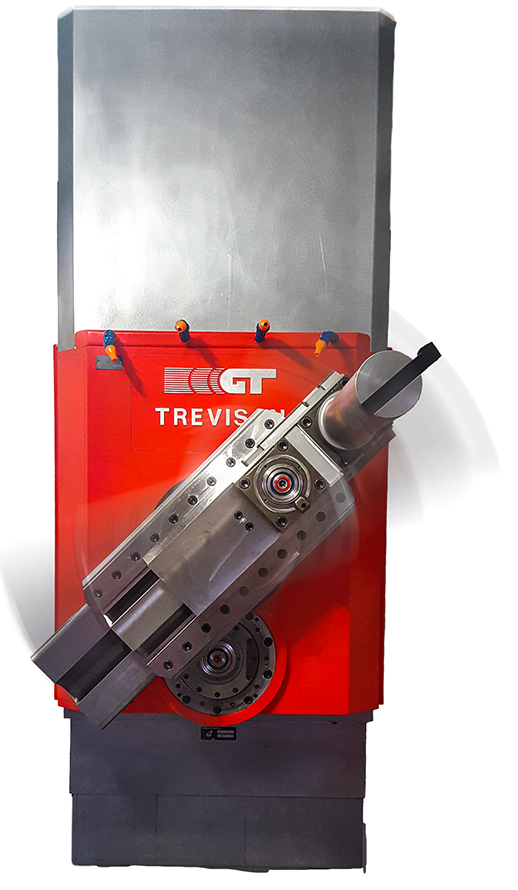

The integrated U-axis mechanism provides an extra programmable numerical control axis operating radially on the tool slide. This unique kinematic design enables simultaneous multi-axis interpolation, allowing complex spherical, conical, back-facing, and variable-diameter contouring without manual tool changes.
Nanjing Fortis Storage Equipment Manufacturing Co., Ltd. supplies complete turnkey CNC systems tailored to heavy manufacturing sectors such as oil and gas valve fabrication, pump housing manufacturing, aerospace structural components, and power generation equipment.
Comprehensive Multi-Operation Capabilities
Execute turning, face milling, deep boring, taper threading, grooving, contouring, and back-facing on a single stationary workpiece setup.
Thermal Stability & Chip Evacuation
Horizontal spindle orientation combined with high-pressure internal coolant channels prevents chip re-cutting, preserving surface finishes and extending tool insert longevity.
Why Industry Leaders Choose U-Axis Machining Centers
Integrating facing heads directly onto heavy-duty horizontal machining platforms offers decisive operational advantages over standard machine tools.
Drastic Cycle Time Reduction
Consolidating VTL turning, horizontal milling, and manual radial drilling operations into one machine run cuts total floor-to-floor cycle times by up to 60%. Elimination of inter-machine transport prevents production bottlenecks.
Unmatched Geometry & Reach
The stroke flexibility of the U-axis facing head permits complex internal and external profiling across deep cavities, large flanges, and offset bore locations that standard tooling heads cannot reach.
Micron-Level Repetitive Accuracy
Eliminating multi-stage re-clamping removes concentricity and alignment errors caused by fixture transfers. Workpieces maintain strict GD&T tolerances across all machined surfaces.
Core Machining Operations Supported
| Operation Type | Kinematic Execution | Primary Industrial Application |
|---|---|---|
| U-Axis Contour Turning | Radial tool slide interpolation synced with main spindle rotation | Valve bodies, pump volutes, pipe flanges, turbine housings |
| Heavy Face Milling | High-torque secondary quill spindle with rigid machine column support | Structural castings, gearbox mating surfaces, engine blocks |
| Precision Boring & Tapping | Multi-axis positioning with direct optical encoder feedback | Flange bolt patterns, internal fluid seal seats, bearing pockets |
| Back-Facing & Undercutting | Programmable radial tool expansion behind narrow bores | Internal seal grooves, API ring grooves, internal snap ring slots |
Global Engineering Support by Nanjing Fortis Storage Equipment Manufacturing Co., Ltd.
With decades of dedicated machine tool development, Nanjing Fortis Storage Equipment Manufacturing Co., Ltd. delivers global B2B procurement partners comprehensive manufacturing solutions backed by strict quality management protocols and worldwide technical service.
Our engineering team assists international buyers through initial part processing evaluation, custom fixture design, tooling selection, onsite installation, operator training programs, and ongoing supply of ready-to-ship replacement parts.
Turnkey System Engineering
Custom fixture design and CNC program optimization tailored specifically for your target production output and part tolerances.
Worldwide Technical Service
Dedicated field engineers available for global commissioning, preventive maintenance, and expert technical guidance.
Direct Manufacturer Support
Direct communication with our engineering division via [email protected] ensures rapid technical assistance and part delivery.
